Product Description

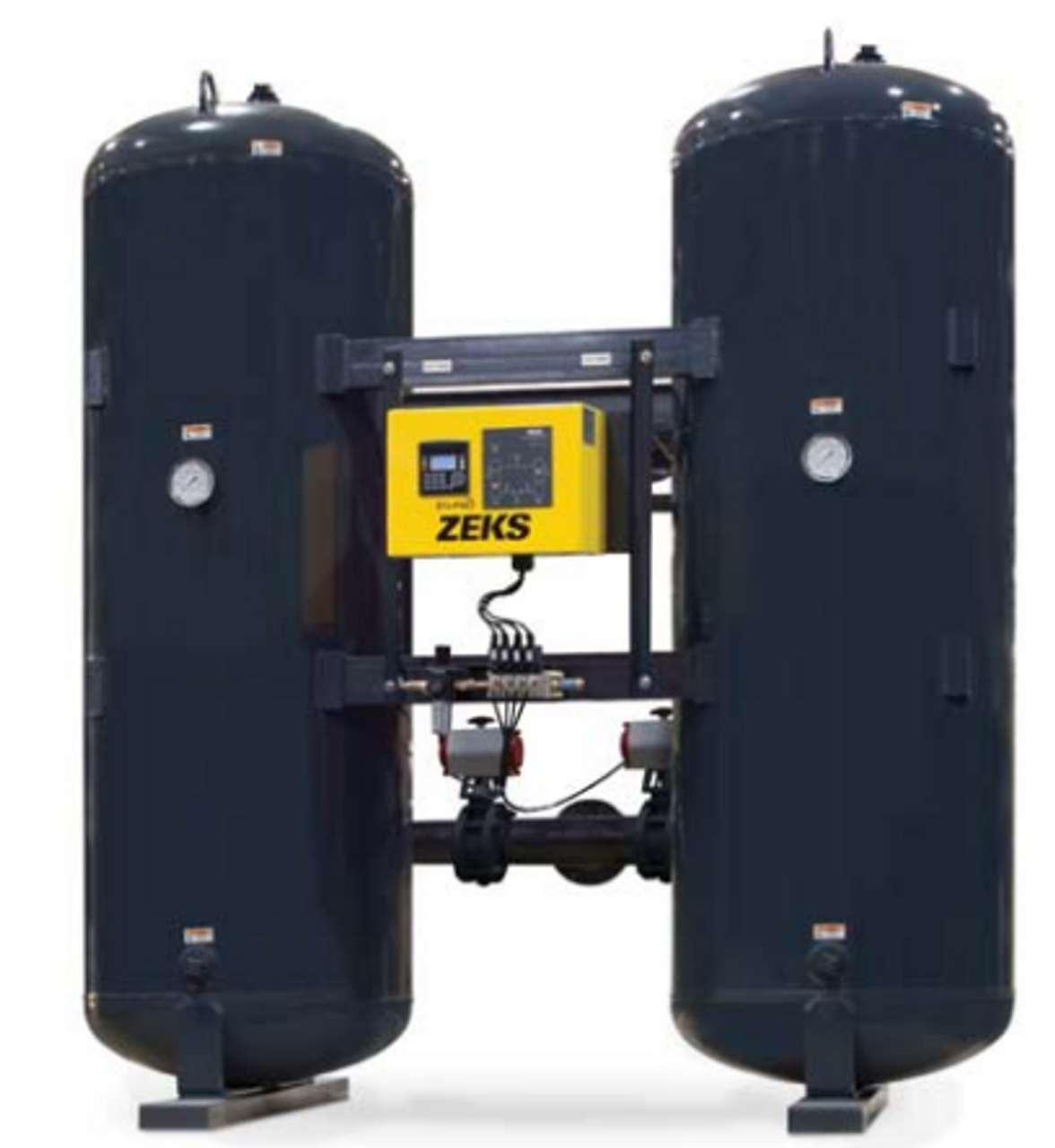

The Zeks 400ZPB (model 400MPS) is a 400 SCFM Eclipse heatless desiccant air dryer. It uses downstream purge, which the manufacturer notes saves energy and increases air compressor life, and is rated for -40°F dew point air quality. This unit is new and ships from San Juan, Texas.
Details
- Brand: Zeks
- Part number: 400ZPB
- Model: 400MPS Eclipse
- Capacity: 400 SCFM
- Dryer type: Heatless desiccant
- Switching valves: Stainless steel angle seat valves (90-600 SCFM range) with a 5-year service interval
- Standard features: NEMA 1 electrical enclosure, stainless steel purge valves with position indicator, solid state timer, illuminated status indication, blue moisture indicator, sound attenuating mufflers, tower pressure gauges, purge pressure gauge, pressure relief valves, high strength activated alumina desiccant, ASME coded towers
- Options: Enhanced digital controller with NEMA 4 option (Modbus-ready, RS-485); pre- and after-filter packages and bypasses
- Design: Low profile, externally mounted control solenoids with Push-To-Test
- Condition: New
- Weight: 1,115 lb
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
400ZPB, Zeks 400MPS
Product Videos
Custom Field
Capacity 400 SCFM
Air Connection In/Out 2" FPT
Length 32 in
Width 52.5 in
Height 68 in
Weight 1115 lbs
Electrical Voltage 115V-1ph-60hz
