Product Description

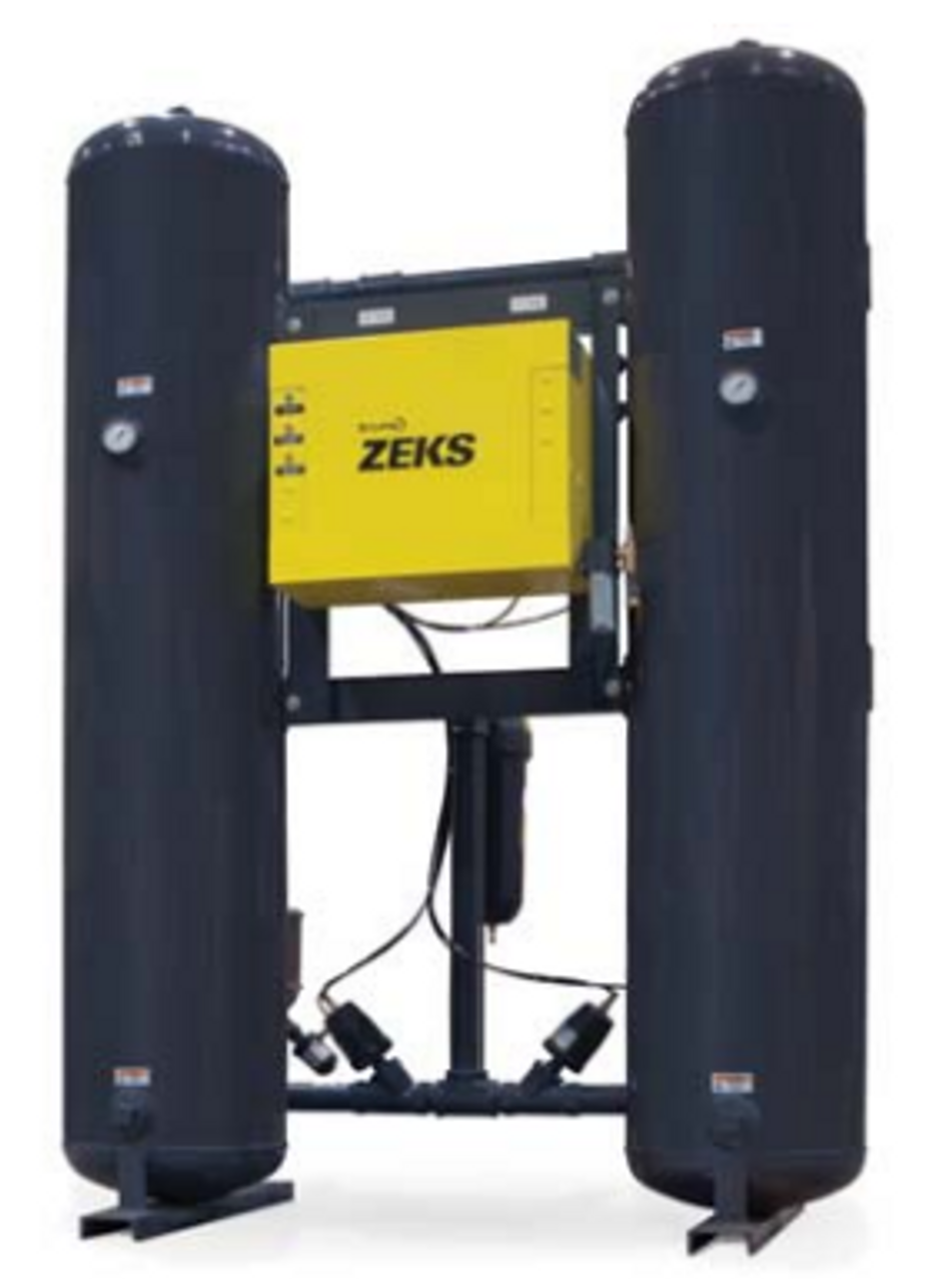

The Zeks 1500MPS Eclipse heatless desiccant air dryer, part number 1500ZPB, is a new 1500 SCFM compressed air dryer. It uses downstream purge, where purge air flows from a downstream source, and a low profile design that permits installation in low clearance areas with serviceable parts positioned within reach.
Details
- Brand: Zeks
- Model: 1500MPS Eclipse
- Part number / SKU: 1500ZPB
- Capacity: 1500 SCFM
- Type: Heatless desiccant
- Switching valves: High performance butterfly valves (3-year service interval for 800-5,000 SCFM models)
- Standard features: NEMA 1 electrical enclosure, stainless steel purge valves with position indicator, solid state timer, illuminated status indication, blue moisture indicator, sound attenuating mufflers, tower pressure gauges, pressure relief valves, purge pressure gauge, high strength activated alumina desiccant, ASME coded towers
- Control solenoids: Externally mounted with Push-To-Test functionality
- Options: NEMA 4 option with enhanced digital controller (Modbus-ready, RS-485); pre- and after-filter packages and bypasses
- Condition: New
- Weight: 2,974 lbs
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
1500ZPB, Zeks 1500MPS
Product Videos
Custom Field
Capacity 1500 SCFM
Air Connection In/Out 4" FLG
Length 55 in
Width 78.5 in
Height 81 in
Weight 2974 lbs
Electrical Voltage 115V-1ph-60hz
