Product Description

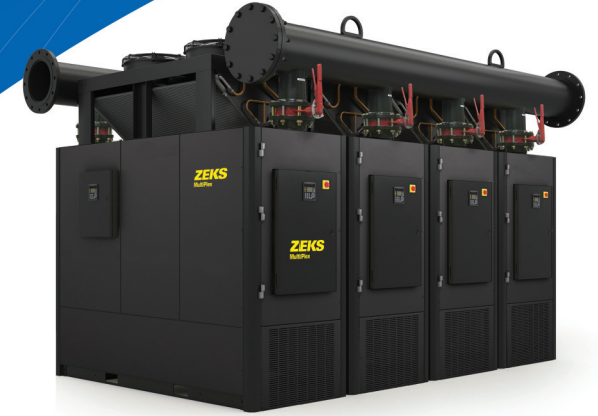

The Zeks 9000HSGM is a 9000 SCFM HeatSink True-Cycling refrigerated cycling air dryer, supplied new. It uses multi-layer heat exchangers that integrate the precooler/reheater, chiller, evaporator and moisture separator, with scroll refrigeration compressors and R-410A refrigerant. ProParts, Inc. sells this dryer and offers technical support by phone from its compressor technicians.
Details
- Brand: Zeks
- Part number: 9000HSGM
- Capacity: 9000 SCFM
- Condition: New
- Weight: 10,349 lbs
- Microchannel air-cooled condensers; top-mounted water-cooled condensers
- Oversized precooler/reheater assemblies to lower air temperature entering the chillers
- Microprocessor digital controller with backlit LCD display
- R-410A refrigerant with zero ODP and minimal refrigerant charge
- No air-loss pneumatic demand drains with large discharge port and liquid level sensor fault signaling
- Integrated dual-element filter removing particles as small as 0.1 micron
- MultiPlex modules share a single inlet and single outlet air header, each with dual connection capability for either-side connection
- Ships from San Juan, Texas
Part number cross-reference
Zeks 9000HSGM
Product Videos
Custom Field
Capacity SCFM 9000 SCFM
In/Out Air Connect Size 12” FLG
Drain Connection 1/2" FNPT (3 Qty.)
Operating Air-Cool 44.1 kW
Operating Water-Cool 30.6 kW
Max Working Pressure 200 PSI
Voltages 460V / 3ph, 60 hz
Refrigerant Type R410A
Length 99.42 in
Width 115.1 in
Height 104.94 in
Weight 10,349 lbs
Pressure Drop 4.1 PSIG
Number of Modules 3
