Product Description

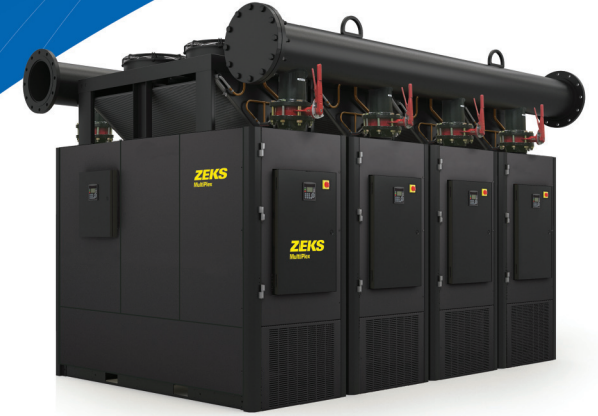

The Zeks 6000HSGM is a 6000 SCFM HeatSink true-cycling refrigerated air dryer for compressed air systems. It uses a multi-layer heat exchanger design that integrates the precooler/reheater, chiller, evaporator and moisture separator. Its MultiPlex modules share a single inlet and a single outlet air header, each with dual connection capability, so the dryer can be connected from either side to suit site conditions.
Details
- Brand: Zeks
- Part number: 6000HSGM
- Capacity: 6000 SCFM
- Condensers: microchannel air-cooled; top-mounted water-cooled condensers on water-cooled versions
- Air circuit: oversized precooler/reheater assemblies reduce air temperature entering the chillers
- Controller: microprocessor controller with backlit LCD display
- Refrigeration: scroll compressors with R-410A refrigerant (zero ODP)
- Drains: pneumatically operated no air-loss demand drains with liquid level sensor fault signal
- Filtration: integrated dual-element filter removing particles as small as 0.1 micron
- Condition: New
- Weight: 6502 lbs
- Ships from: San Juan, Texas
Sold by ProParts, Inc. Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
Zeks 6000HSGM
Product Videos
Custom Field
Capacity SCFM 6000 SCFM
In/Out Air Connect Size 10” FLG
Drain Connection 1/2" FNPT (2 Qty.)
Operating Air-Cool 29.4 kW
Operating Water-Cool 20.4 kW
Max Working Pressure 200 PSI
Voltages 460V / 3ph, 60 hz
Refrigerant Type R410A
Length 99.42 in
Width 81.53 in
Height 98.89 in
Weight 6502 lbs
Pressure Drop 4.1 PSIG
Number of Modules 2
