Product Description

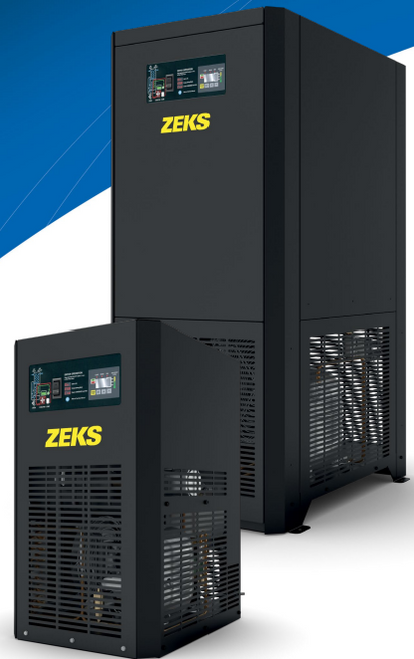

The Zeks 200HSH-230V (part number 200HSH) is a new 200 SCFM HeatSink refrigerated cycling air dryer for 230V service. It runs automatically from a panel-mounted digital controller with an illuminated display. ProParts, Inc. ships it from San Juan, Texas, and our compressor technicians offer technical support by phone.
Digital Controller
- Shows dryer operating status
- Shows when the dryer is saving energy
- Condensate drain timing and test interface
- Shows faults, drain open and condenser fan operation
Standard Features
- Multi-layer heat exchanger with built-in precooler/reheater and low pressure drop
- Pre- and post-filtration with ZEKS Grade G and H filters
- R-513A refrigerant with a small charge volume
- Timed solenoid condensate drain, adjusted through the digital controller
- Filterstop/strainer drain connection that guards the drain against debris
- Certified to UL standards 60335-1 and 60335-2-40
- Galvanized internal structure and powder-coated enclosure
- Note: the standard 3-prong grounded plug applies only to 10-150 cfm models
Details
- Brand: Zeks
- Part number: 200HSH
- Store SKU: 200HSH-230
- Capacity: 200 SCFM
- Voltage: 230V
- Condition: New
- Weight: 490 lbs
- Ships from: San Juan, Texas
Part number cross-reference
200HSH, 200HSH-230, 200HSH-230V
Product Videos
Custom Field
Capacity SCFM 200 SCFM
In/Out Air Connect Size 1.5” FPT
Pressure Drop 1.9 PSID
Voltage 230V / 3ph, 60hz
Length 32.5 in
Width 22.9 in
Height 49.3 in
Weight 490 lbs
Timed Solenoid Drain Included
Pre & After Filters Included
Microprocessor Controller Included
Remote Alarm Ready Included
