Product Description

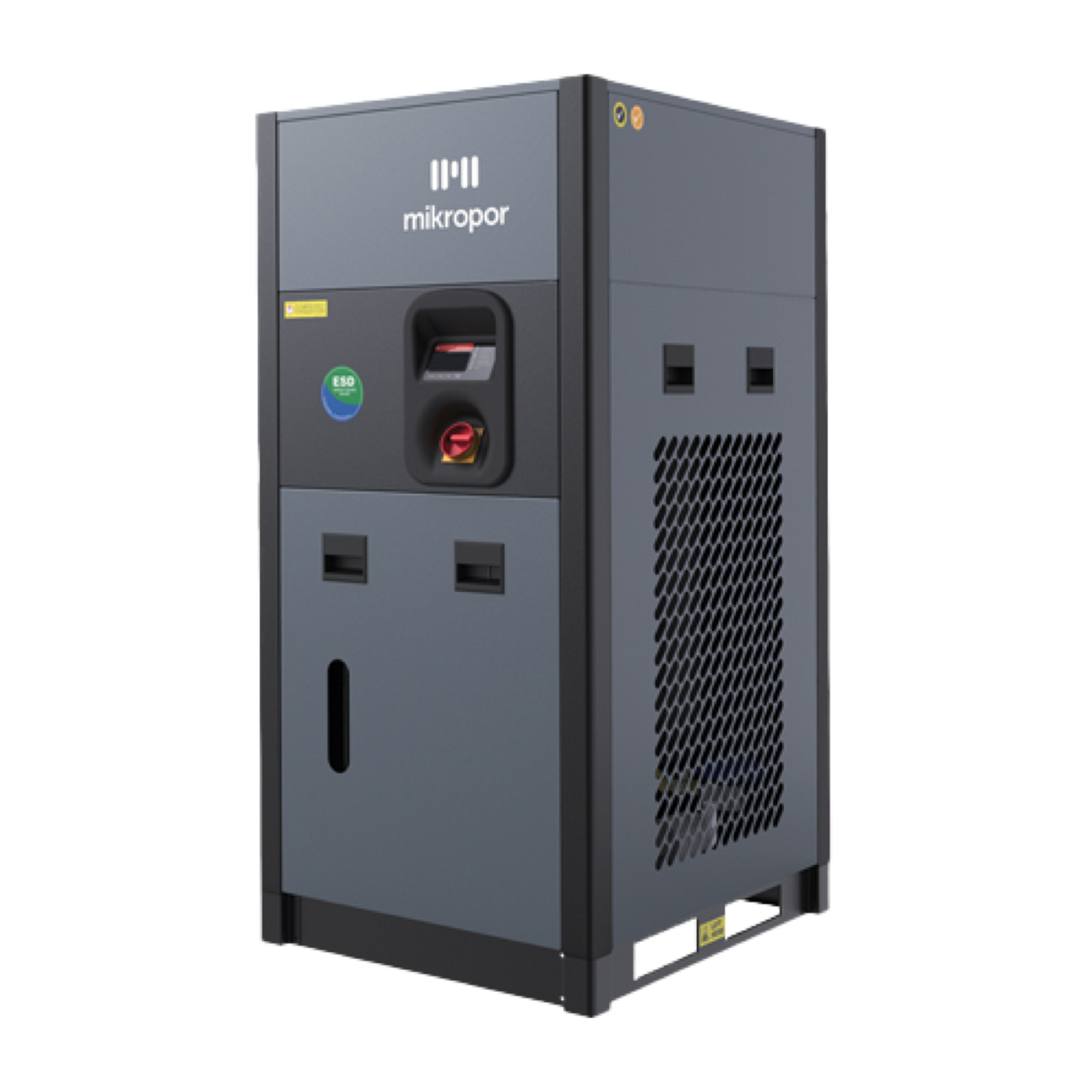

The Mikropor MCYUS-200N-230-3-60 is an MCY series cycling refrigerated air dryer, model MCYUS-200N, configured for 230V, 3-phase, 60Hz power. It is offered new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Series: MCY Cycling Refrigerated Air Dryer
- Model: MCYUS-200N
- Electrical: AC 230/3/60
- Part number / SKU: MCYUS-200N-230-3-60
- Category: Cycling Dryers
- Condition: New
- Listed weight: 1 lb
- Ships from: San Juan, Texas
Part number cross-reference
MCYUS-200N-230-3-60 (also listed as model MCYUS-200N, AC 230/3/60).
Product Videos
Custom Field
Product Line Mikropor MCY-US Cycling Refrigerated Air Dryer
Air Connection 2" NPT
Capacity (FAD) 200 scfm
Voltage 230V/3Ph/60Hz
Replacement Filter Kit MKON805 KIT
Dimensions (L x W x H) 33.7 x 28.6 x 59.3 in
Weight 406 lbs
Type Thermal Mass / Cycling Refrigerated Dryer
Max Working Pressure 230 psig
Min Working Pressure 60 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 122°F
Refrigerant R-513a
Cooling Air-Cooled
