Product Description

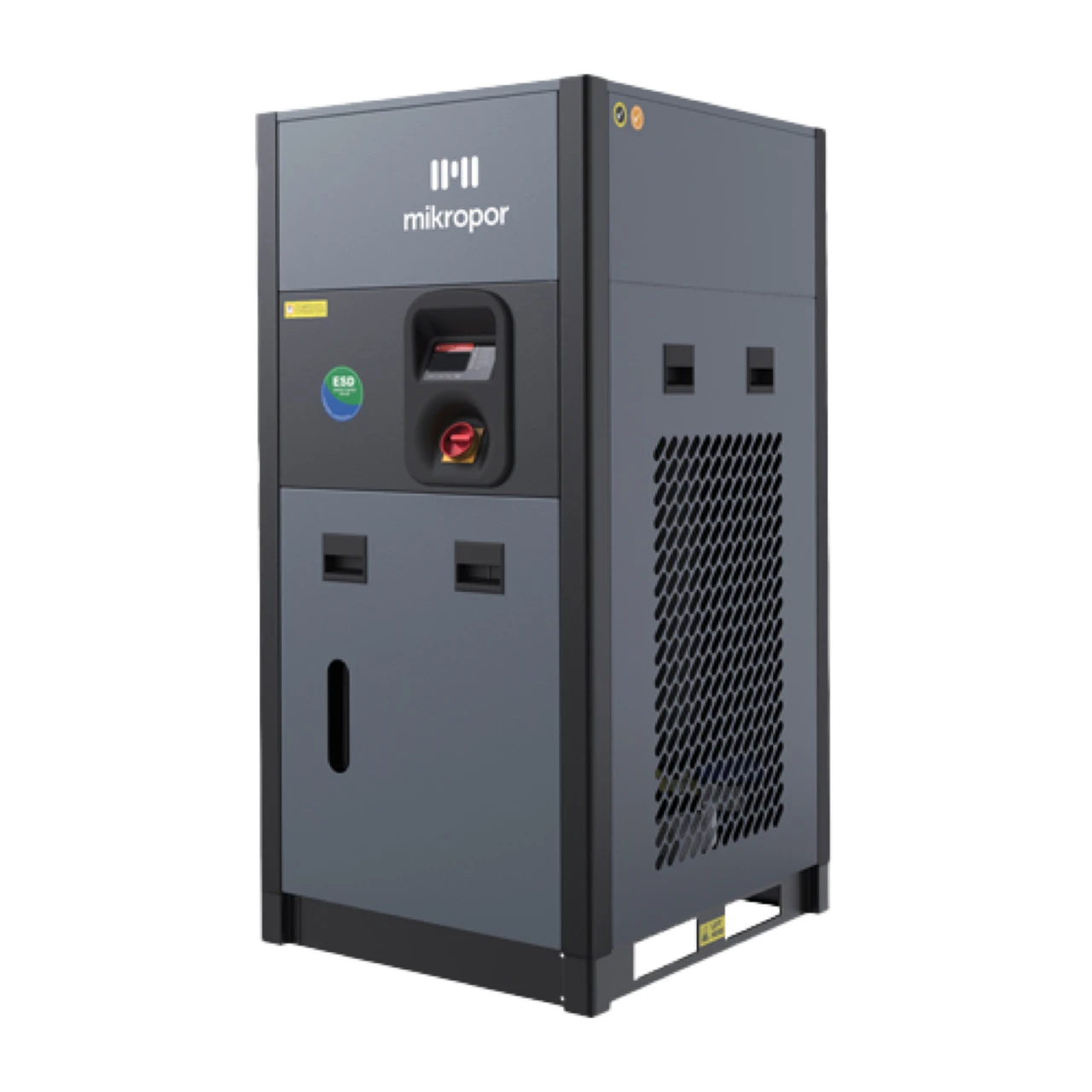

The Mikropor MCYUS-140N-460-3-60 is an MCY cycling refrigerated air dryer, model MCYUS-140N, configured for 460/3/60 AC power. It is listed in the Cycling Dryers category and is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
The unit ships from San Juan, Texas, and ProParts compressor technicians can answer technical questions by phone.
Details
- Brand: Mikropor
- Series: MCY cycling refrigerated air dryer
- Model: MCYUS-140N
- Part number / SKU: MCYUS-140N-460-3-60
- Electrical: AC 460/3/60
- Condition: New
- Ships from: San Juan, Texas
- Support: Phone technical support from ProParts compressor technicians
Part number cross-reference
MCYUS-140N-460-3-60 is also referenced as model MCYUS-140N AC 460/3/60 and by the full configuration code MCY-US-140NPTYTESD3460360AC7012GONMKR-R3.
Product Videos
Custom Field
Product Line Mikropor MCY-US Cycling Refrigerated Air Dryer
Air Connection 1-1/2" NPT
Capacity (FAD) 140 scfm
Voltage 460V/3Ph/60Hz
Replacement Filter Kit MKON405 KIT
Dimensions (L x W x H) 30.6 x 29.4 x 54.3 in
Weight 220 lbs
Type Thermal Mass / Cycling Refrigerated Dryer
Max Working Pressure 230 psig
Min Working Pressure 60 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 122°F
Refrigerant R-513a
Cooling Air-Cooled
