Product Description

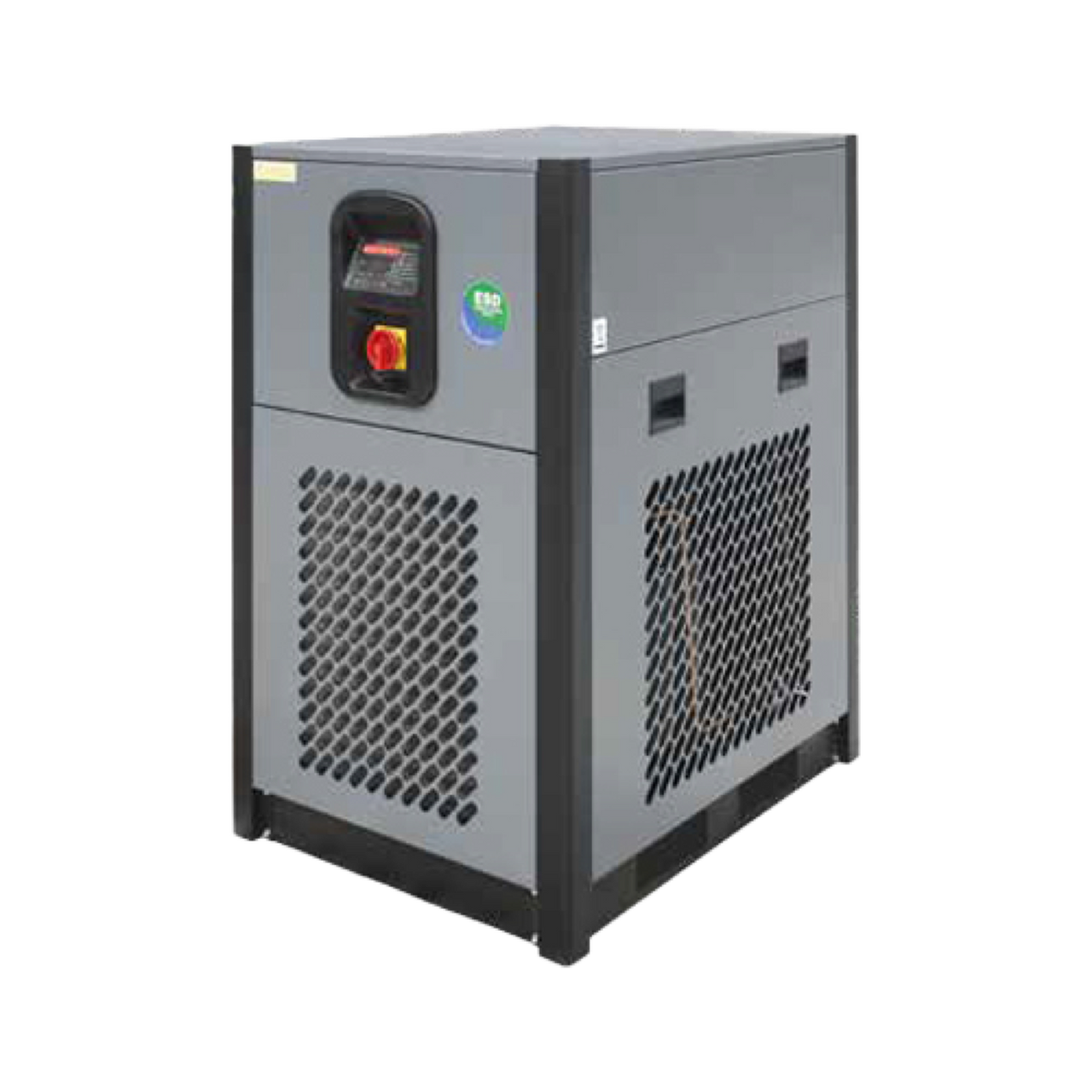

The Mikropor MKHP-US-750-460V is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-750, configured for 460V AC power. It is part of Mikropor's MK-HP line of refrigerated dryers for high-pressure compressed air systems. This unit is sold new by ProParts, Inc. and ships from San Juan, Texas.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-750
- Voltage: 460V AC
- Part number / SKU: MKHP-US-750-460V
- Condition: New
- Category: Refrigerated Dryers
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-750-460V is also referenced as Mikropor MKHP-US-750 AC 460V and MK-HP-1600-NPT-NB-DPR0-460360AC7012NFMKR.
ProParts, Inc. is an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2" Flange ANSI Class 600
Voltage 460V/3Ph/60Hz
Capacity (FAD) 750 cfm
Dimensions (L x W x H) 37 x 31 x 57 in
Weight 948 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
