Product Description

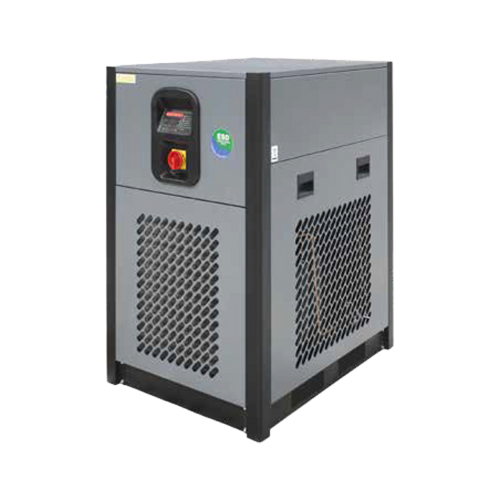

The Mikropor MK-HP High-Pressure Refrigerated Air Dryer, part number MKHP-US-700-WC-230-1-60 (model MKHP-US-700 WC 230/1/60), is a refrigerated dryer from Mikropor's MK-HP high-pressure series. It is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-700 WC 230/1/60
- Part number / SKU: MKHP-US-700-WC-230-1-60
- Category: Refrigerated Dryers
- Condition: New
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-700-WC-230-1-60 is listed as Mikropor model MKHP-US-700 WC 230/1/60.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2" Flange ANSI Class 600
Capacity (FAD) 700 cfm
Voltage 230V/1Ph/60Hz
Dimensions (L x W x H) 37 x 29 x 46 in
Weight 518 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Water-Cooled
