Product Description

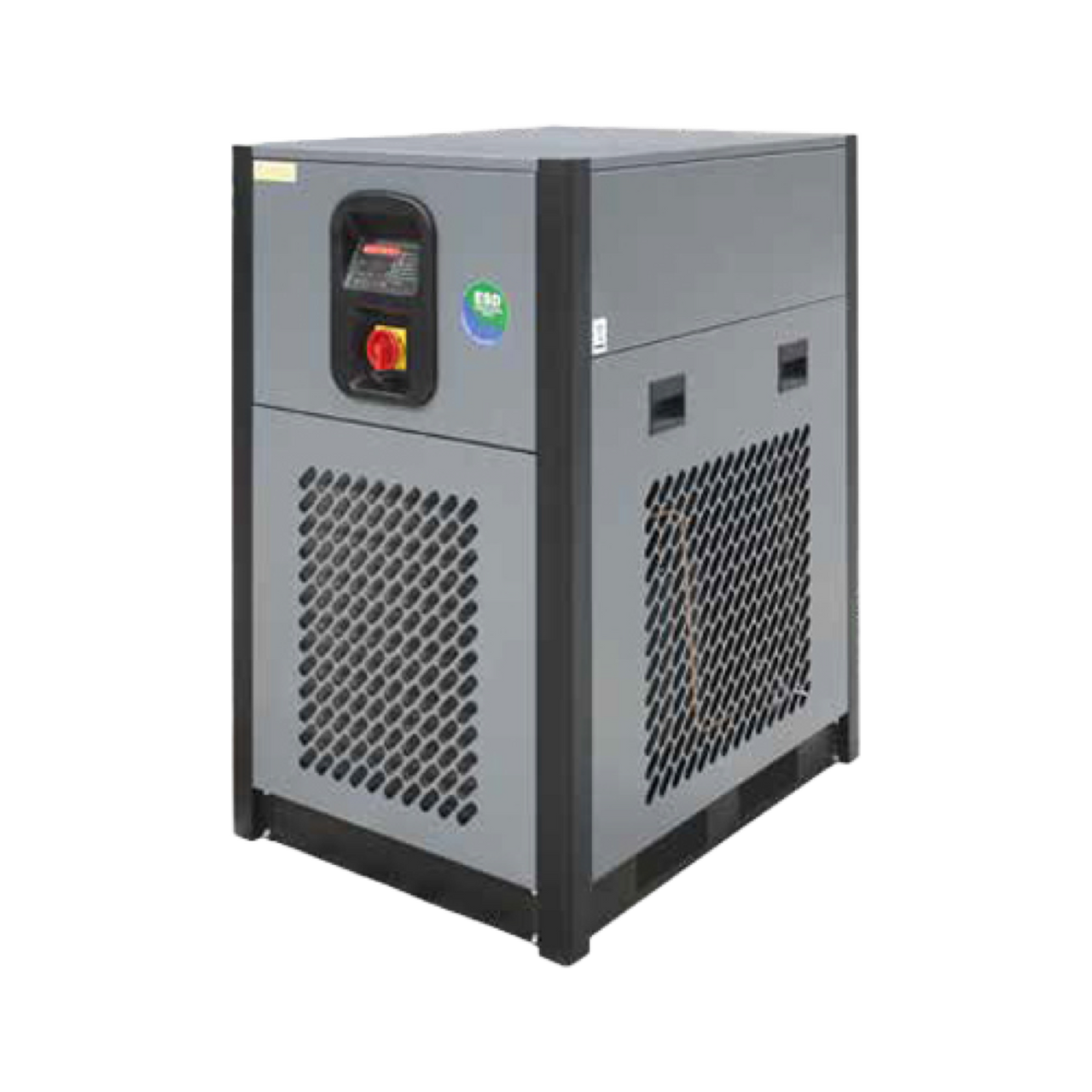

The Mikropor MKHP-US-700-230-3-60 is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-700, configured for AC 230/3/60 power. It is part of the Mikropor MK-HP line of high-pressure refrigerated dryers. This unit is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-700
- Part number: MKHP-US-700-230-3-60
- Electrical: AC 230/3/60
- Category: Refrigerated Dryers
- Condition: New
- Listed weight: 1 lb
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-700-230-3-60 (store SKU MKHP-US-700-230-3-60), Mikropor model MKHP-US-700.
Technical support is available by phone from ProParts compressor technicians.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2" Flange ANSI Class 600
Capacity (FAD) 700 cfm
Voltage 230V/3Ph/60Hz
Dimensions (L x W x H) 37 x 29 x 46 in
Weight 518 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
