Product Description

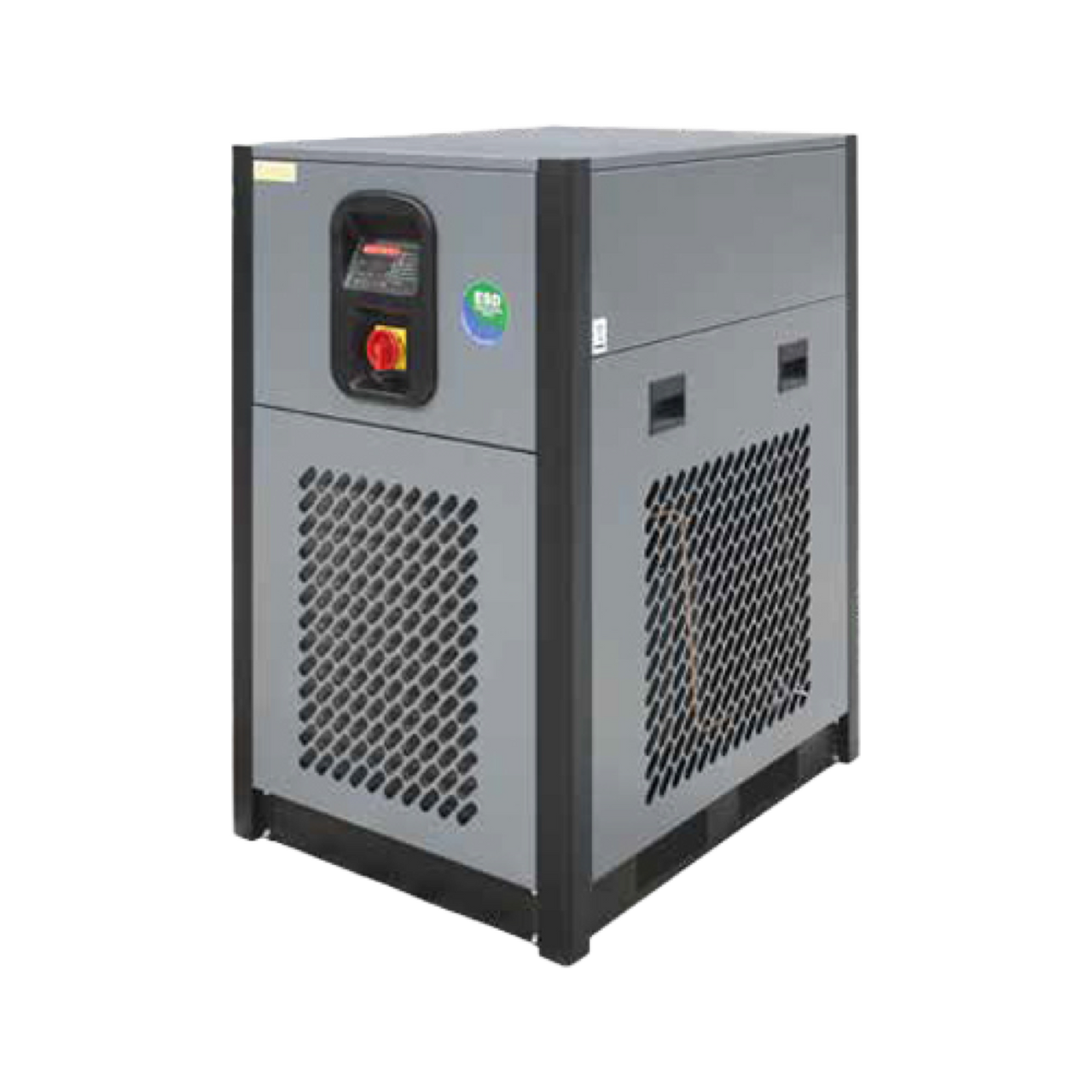

The Mikropor MK-HP High-Pressure Refrigerated Air Dryer, part number MKHP-US-550-WC-230-3-60 (model MKHP-US-550 WC 230/3/60), is offered new by ProParts, Inc. It belongs to Mikropor's MK-HP line of high-pressure refrigerated dryers for compressed air systems. ProParts is an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico, and this unit ships from San Juan, Texas.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-550 WC 230/3/60
- Part number / SKU: MKHP-US-550-WC-230-3-60
- Category: Refrigerated Dryers
- Condition: New
- Listed weight: 1 lb
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKHP-US-550-WC-230-3-60 is also listed as Mikropor model MKHP-US-550 WC 230/3/60.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2" Flange ANSI Class 600
Capacity (FAD) 550 cfm
Voltage 230V/3Ph/60Hz
Dimensions (L x W x H) 37 x 29 x 46 in
Weight 507 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Water-Cooled
