Product Description

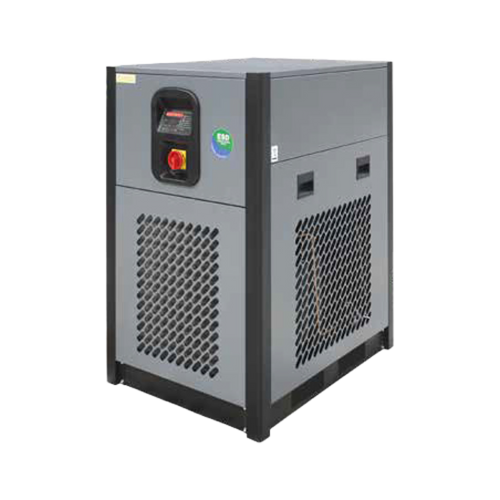

The Mikropor MKHP-US-2800-460V is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-2800, configured for AC 460V power. It is part of the Mikropor MK-HP line of refrigerated dryers for high-pressure compressed air systems. This unit is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-2800
- Voltage: AC 460V
- Part number / SKU: MKHP-US-2800-460V
- Category: Refrigerated Dryers
- Condition: New
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKHP-US-2800-460V, also listed as Mikropor MK-HP model MKHP-US-2800 AC 460V.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 4" Flange ANSI Class 600
Voltage 460V/3Ph/60Hz
Capacity (FAD) 2800 cfm
Dimensions (L x W x H) 62 x 39 x 59 in
Weight 1600 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
