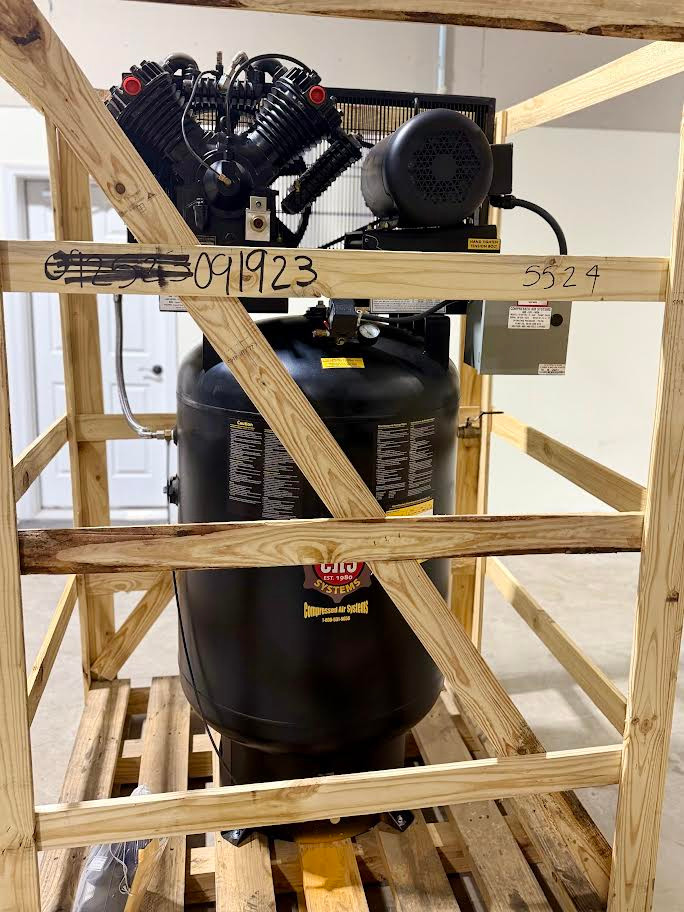

Product Description
HP 7.5
Voltage 208-230/480/3
28 CFM @ 175 PSI
Tank 120 Gallon Vertical
43x30x78
900 lbs
Features

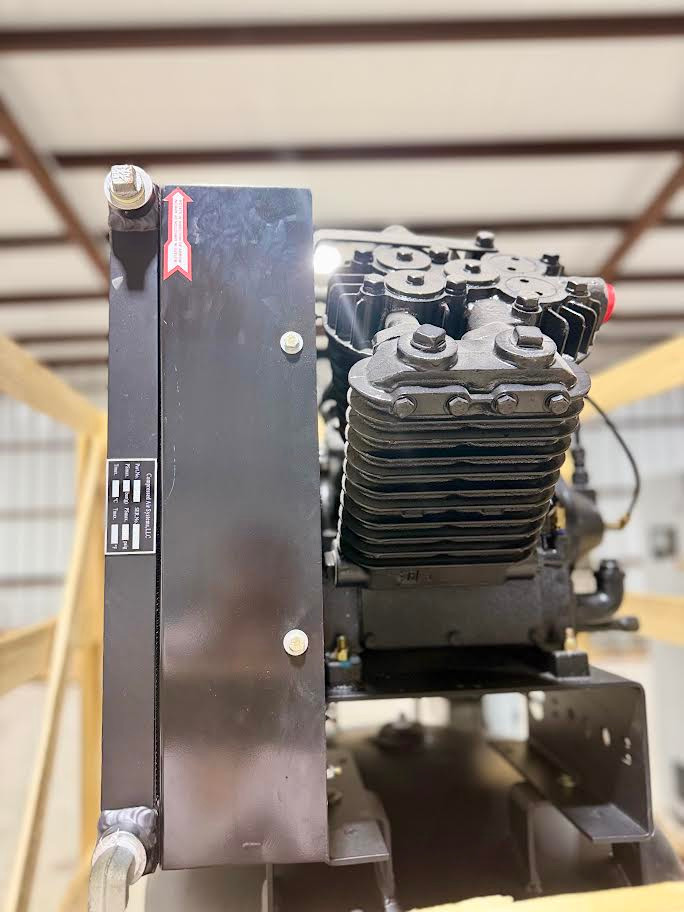

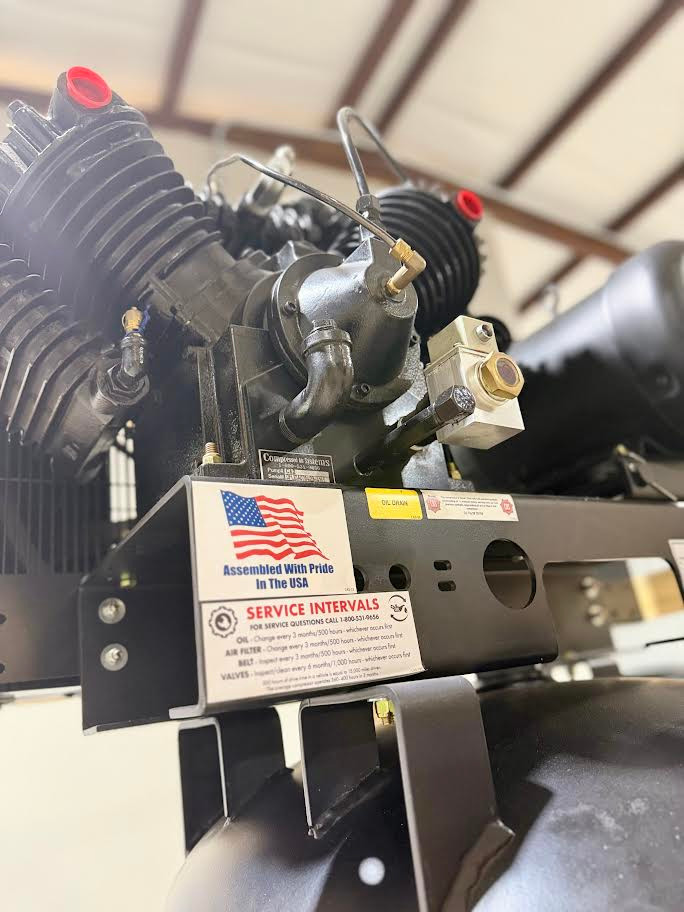

- Heavy-duty two-stage solid cast iron pump
- Disk and spring valves
- Centrifugal unloader
- Access to compressor valves without compressor head removal
- All UL electrical controls

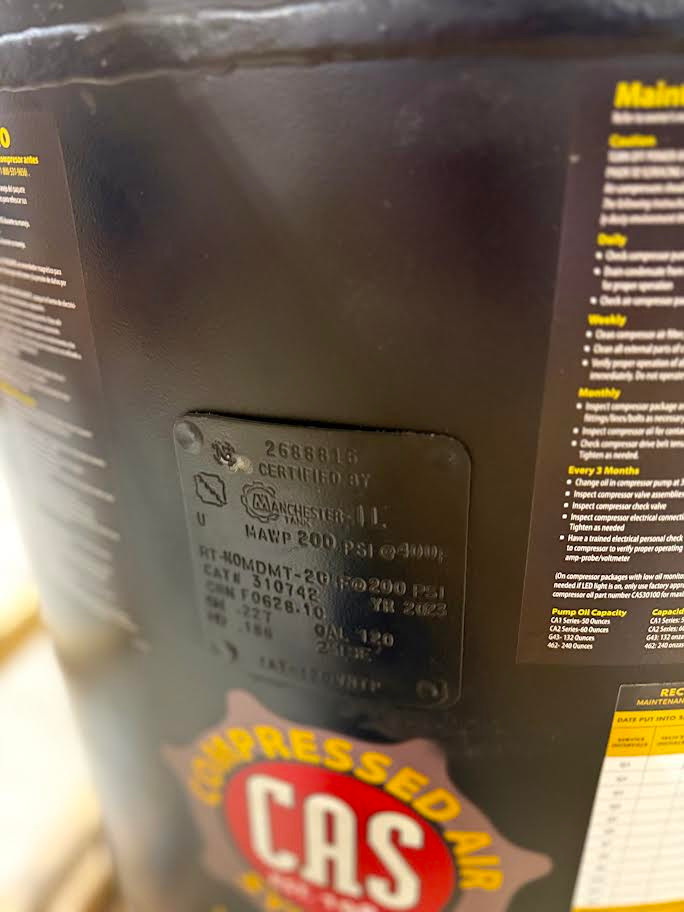

- ASME/CRN certified air receiver

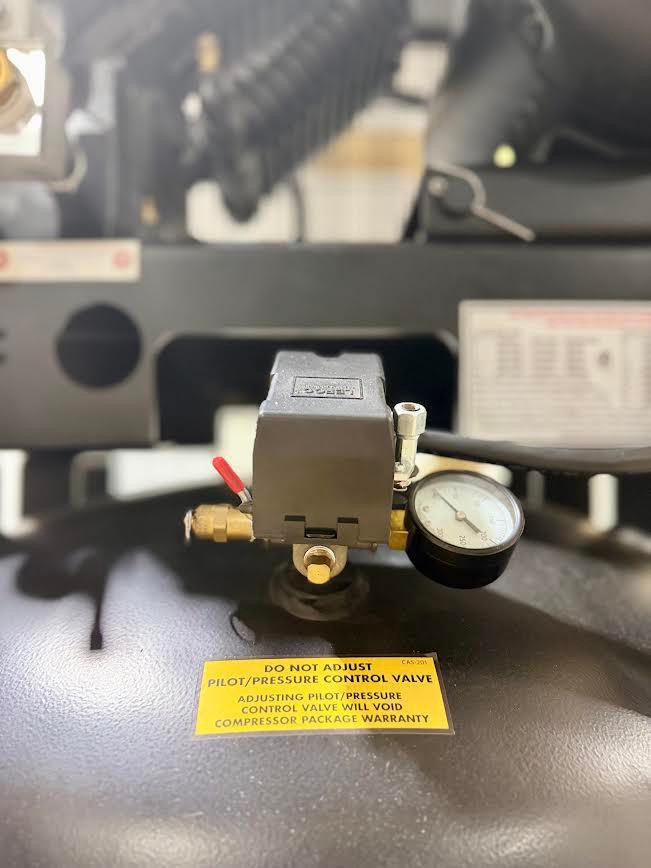

- Auto start/stop
- Bearings on both ends of the crank shaft
- Fully enclosed belt guard
- Heavy-duty air filter
- Industrial grade electric motor

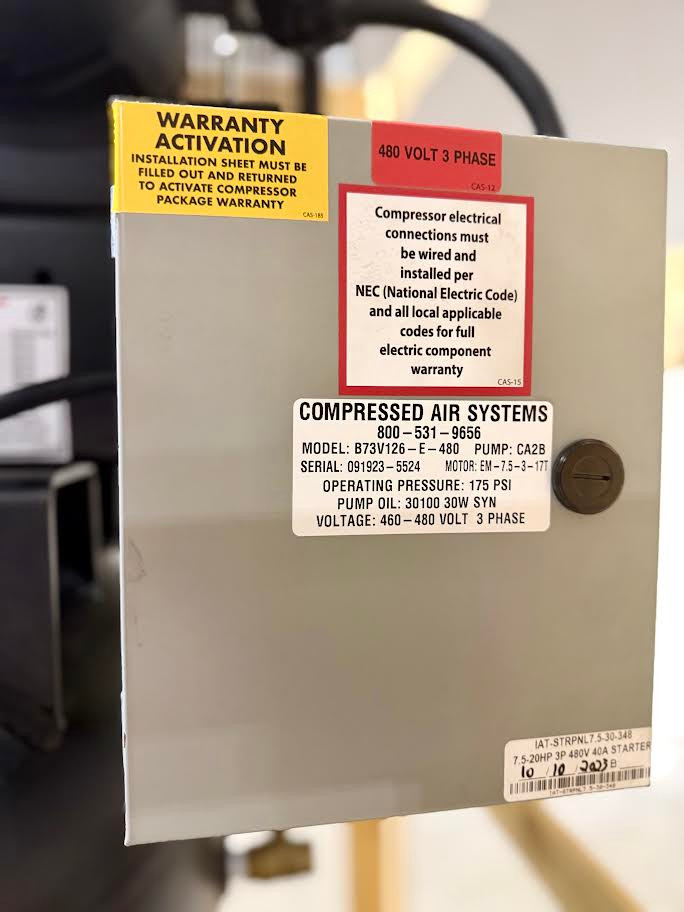

- Magnetic starter mounted and wired
- Needle bearings, and inserts on rods
- Stainless steel flexible air lines
- Swedish steel valves
- TEFC drive motor (3 phase only)
- Torrington needle bearings
- 2-groove B width motor pulley
- 2-piece tank top plate design
Elite Features
- All basic features
- Automatic tank drain
- Belt guard after cooler
- Low oil monitor
- Tank discharge ball valve
- Vibration pads
Product Videos
Custom Field
Motor Power 7.5 HP
Air Delivery 28 CFM @ 175 PSI
Working Pressure 175 PSI
Length 43 in
Width 30 in
Height 78 in
Weight 900 lbs
