Product Description

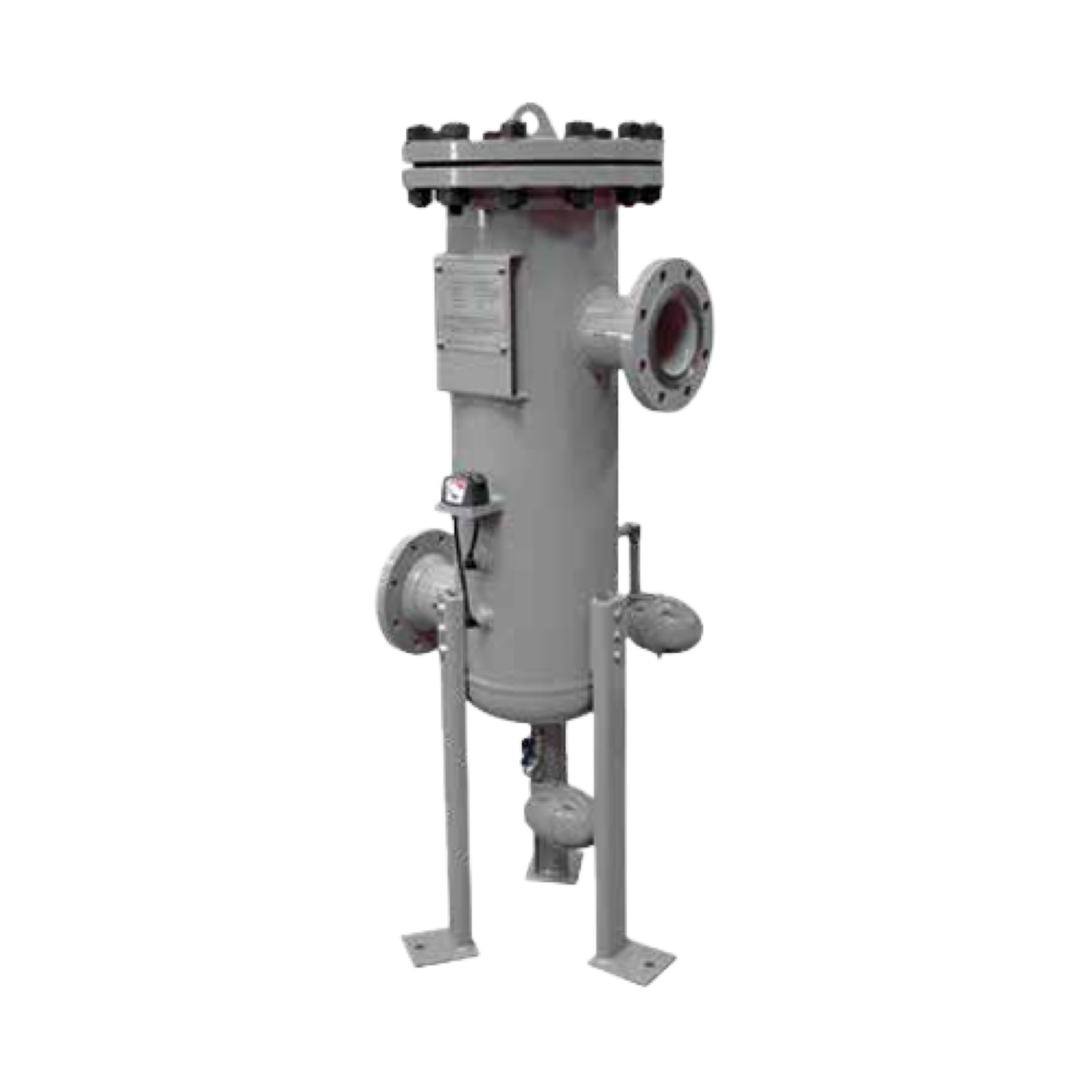

The Mikropor ELM-US-8000 is an 8,000 scfm ELM Series high efficiency mist eliminator air filter. It is designed to remove oil-mist carryover from piston or oil flooded rotary compressors and to capture oil fog, mist or smoke from exhaust and pressure unloading vents on oil flooded compressors, vacuum pumps and blowers. The ELM Series covers 150 scfm to 12,000 scfm.
Applications
- Applications requiring low delta P coalescing or large air volumes
- Vacuum freeze drying, vacuum out-gassing and vacuum coating
- Food processing, nailers and staplers
- Industrial vacuum processes
- Cement and paper processing
Details
- Brand: Mikropor
- Part number: ELM-US-8000
- Flow: 8,000 scfm
- Pressure rating: 200 psi
- Continuous temperature: 36°F min., 176°F max.
- Filtration: particles down to 0.01 micron, including coalesced liquid water and oil; maximum remaining oil aerosol content 0.01 ppm
- Very low pressure drop, easy field cleaning, positive sealing O-rings
- Auto float drain standard; multiple drain style options available
- Elements grounded to canister to minimize static electricity problems
- Condition: New
- Weight: 25 lbs
- Ships from: San Juan, Texas
Part number cross-reference
ELM-US-8000 (Mikropor ELM Series)
