Product Description

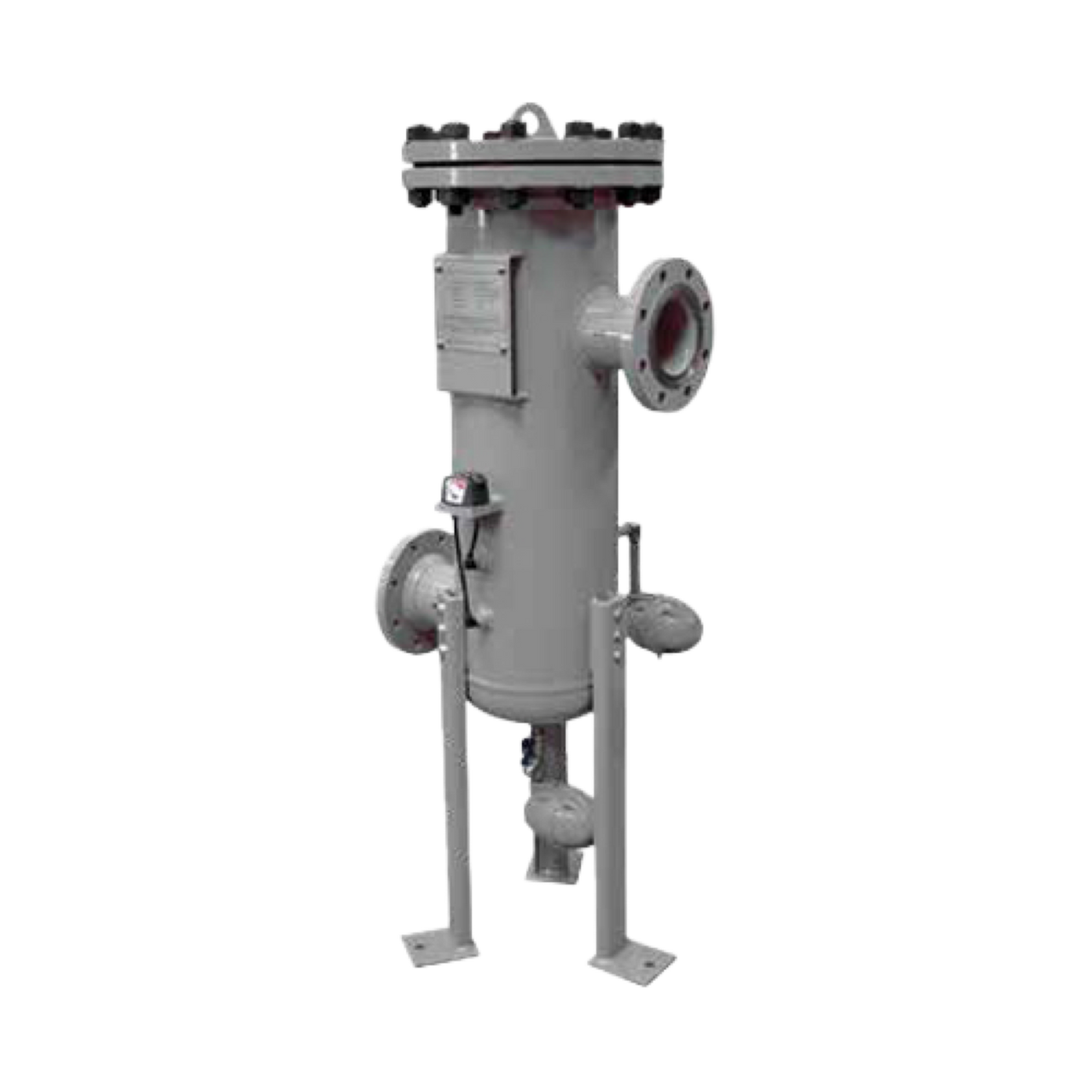

The Mikropor ELM-US-1600 is a 1,600 scfm ELM Series high efficiency mist eliminator air filter for removing oil-mist carryover from piston or oil-flooded rotary compressors. It is built for very low pressure drop and large air volumes, and it also captures oil fog, mist or smoke from exhaust and pressure unloading vents on oil-flooded compressors, vacuum pumps and blowers.
Details
- Brand: Mikropor
- Model / part number: ELM-US-1600
- Series: ELM Series (150 to 12,000 scfm range)
- Flow rating: 1,600 scfm
- Pressure rating: 200 psi
- Continuous temperature: 36°F min. to 176°F max.
- Filtration: particles down to 0.01 micron, including coalesced water and oil; maximum remaining oil aerosol content 0.01 ppm
- Auto float drain standard; multiple drain style options available
- Positive sealing O-rings; elements grounded to canister to minimize static electricity
- Easy field cleaning
- Applications: vacuum freeze drying, vacuum out-gassing and coating, food processing, nailers/staplers, industrial vacuum processes, cement and paper processing
- Condition: New
- Weight: 69 lbs
- Ships from McAllen, Texas; phone support from ProParts compressor technicians
Part number cross-reference
ELM-US-1600
Product Videos
Custom Field
Drain Port Size (NPT) 1/2 in
Inlet/Outlet Port Size (NPT) 3 in
Flow Rate 1,600 scfm
Max Working Pressure 200 psi
Housing Dimension A 23.6 in
Housing Dimension B 66.17 in
Housing Dimension C 11.15 in
Housing Dimension D 42.85 in
Housing Dimension oE 19 in
Housing Dimension oF 4 in
Housing Dimension G 36 in
Housing Dimension H 37 in
Product Line Mikropor ELM-US High-Efficiency Mist Eliminator
Capacity (FAD) 1600 scfm
Air Connection 3" NPT
Dimensions (A-H) A23.6 B66.17 C11.15 D42.85 E19 F4 G36 H37 in
Type High-Efficiency Mist Eliminator Air Filter
Drain Port 1/2" NPT
