Product Description
DOWNSTREAM FILTERS: THE NEED AND ITS APPLICATION
The atmospheric air comprises moisture, particle contaminants, microorganisms, and gases. When this air gets compressed, the concentration of these elements increases by 6 to 10 times. However, when this atmospheric air gets compressed by an air compressor, other contaminants like oil and metal traces get added during the compression process. It is essential to remove these contaminants from the compressed air before being used for any application.

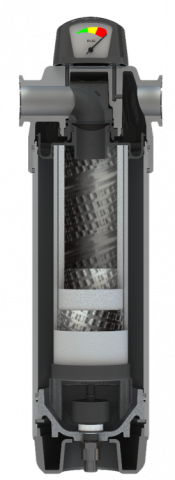

WORKING PRINCIPLE
1. Contaminated compressed air enters the filter through inlet port
2. Contaminated air is filtered while coming from inside to outside of filter element
3. Large droplets of condensate are collected by element and drained gravitationally
4. Collected moisture/water at the bottom of filter bowl is drained out of filter with the help of internal float drain
5. Filtered cleaner air is sent out of the filter through outlet port
Sales, service and parts across the USA and Mexico. ProParts, Inc. is an authorized ELGi distributor based in San Juan, Texas. We ship nationwide across the USA and Mexico and service ELGi compressors throughout both countries, with 24/7 response in the Rio Grande Valley, South Texas and Northern Mexico. Call (956) 462-0947 or WhatsApp us for a configured quote, options and lead times.
