Product Description

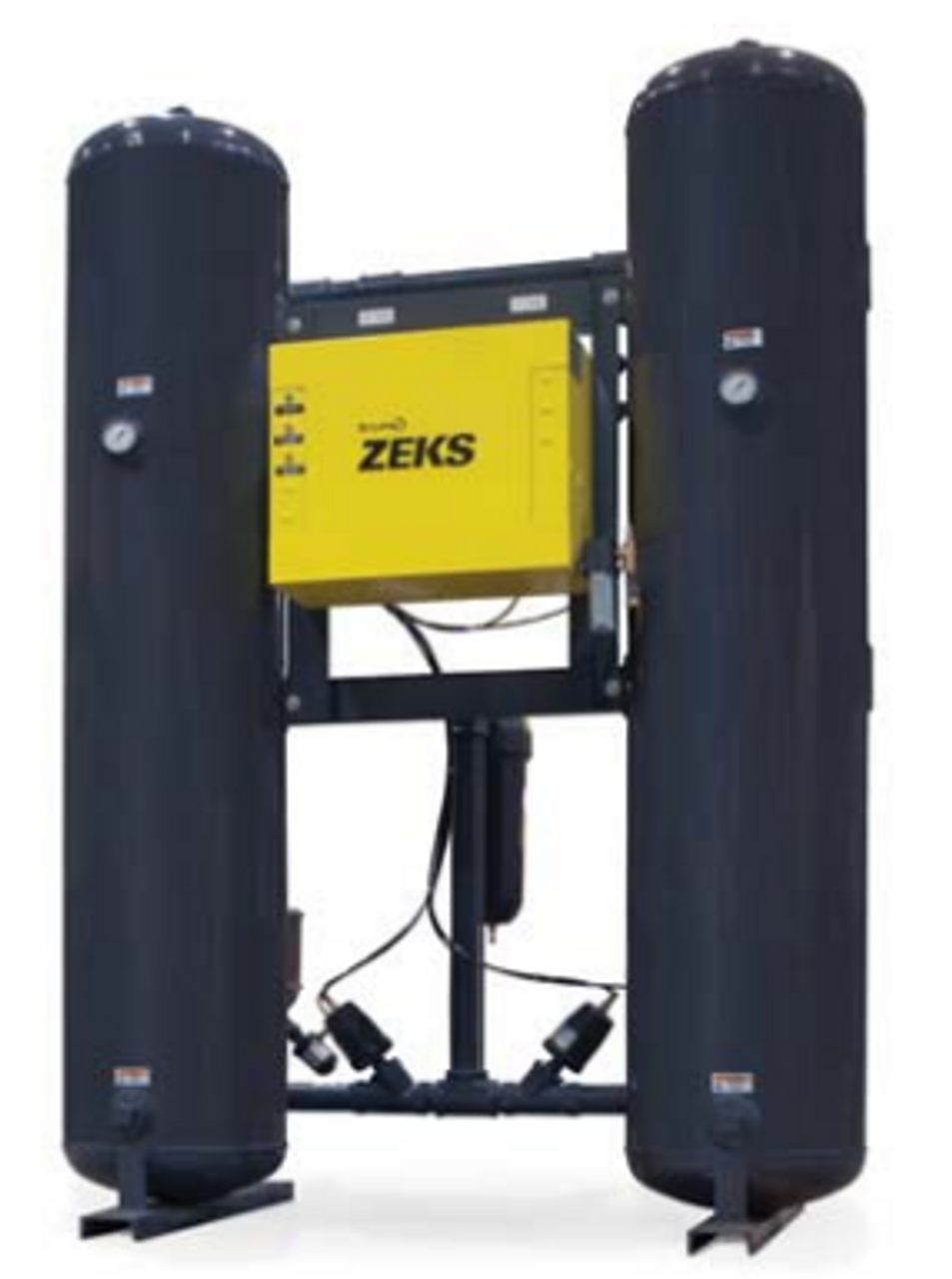

The Zeks 200ZPB is the 200MPS Eclipse heatless desiccant air dryer, rated for 200 SCFM and delivering -40°F dew point air quality. It uses downstream purge, high strength activated alumina desiccant in ASME coded towers, and stainless steel angle seat switching valves. Its low profile design permits installation in low clearance areas, with serviceable parts positioned within reach.
Details
- Brand: Zeks
- Part number: 200ZPB
- Model: 200MPS Eclipse, 200 SCFM
- Dryer type: Heatless desiccant
- Dew point: -40°F
- Switching valves: Stainless steel angle seat valves (5-year service interval stated for 90-600 SCFM models)
- Standard features: NEMA 1 electrical enclosure, solid state timer, stainless steel purge valves with position indicator, illuminated status indication, blue moisture indicator, sound attenuating mufflers, tower pressure gauges, purge pressure gauge, pressure relief valves
- Control solenoids: Externally mounted with Push-To-Test functionality
- Options: NEMA 4 option includes an enhanced digital controller (Modbus-ready, RS-485); pre- and after-filter packages and bypasses available
- Condition: New
- Weight: 731 lbs
- Ships from: San Juan, Texas
Part number cross-reference
200ZPB, Zeks 200MPS Eclipse. Technical support is available by phone from ProParts compressor technicians.
Product Videos
Custom Field
Capacity 200 SCFM
Air Connection In/Out 1-1/2" FPT
Length 32 in
Width 44.5 in
Height 66 in
Weight 731 lbs
Electrical Voltage 115V-1ph-60hz
