Product Description

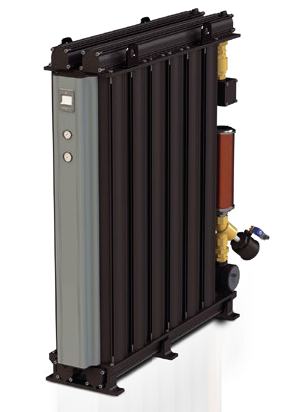

Mikropor DRYTEC SDM-Series modular desiccant compressed-air dryer delivering a -40°F pressure dewpoint (optional -100°F). Heatless regenerative design with integral pre- and post-filtration. Model SMD-HC-US-890: SMD-890-NPT-40C-7015-MKR.Documentation
Product Videos
Custom Field
Product Line Mikropor MMD Modular Desiccant Air Dryer
Capacity (FAD) 890 scfm
Air Connection 3" NPT
Dimensions (L x W x H) 72.63 x 15.7 x 80.8 in
Voltage 115-240V/1Ph/50-60Hz
Recommended Filters GON-HC-US-910
Type Modular (Heatless) Desiccant Dryer
Pressure Dew Point -40°F (-100°F optional)
Nominal Inlet Temperature 95°F
Max Working Pressure 230 psig
Max Inlet Temperature 122°F
Max Ambient Temperature 122°F
Cooling Air-Cooled
