Product Description

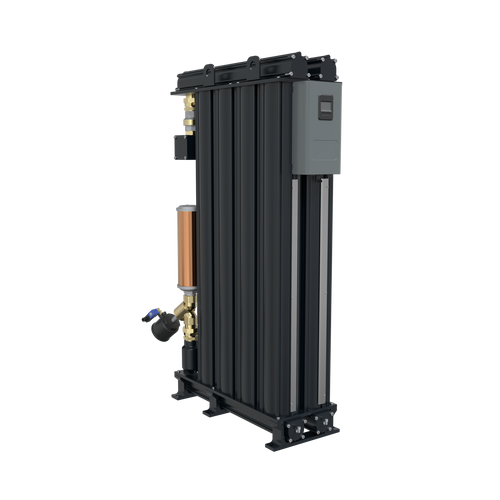

The Mikropor MHL-400 (Model MHL 400) is a 400 scfm twin tower heatless desiccant air dryer that supplies clean, very dry compressed air for critical applications. MHL Series dryers provide a constant -40°F pressure dew point as standard, with -94°F available as an option. Pre-filters, after-filters and an electronic controller are standard.
Principle of operation
Compressed air passes through one desiccant bed, which adsorbs water vapor, while the other bed is regenerated at the same time without heat. A small portion of dry outlet air is diverted at near atmospheric pressure and flows in a counter direction through the wet bed to sweep out the adsorbed moisture. The purge flow rate is adjustable to suit the desired outlet dew point.
Details
- Brand: Mikropor
- Model / part number: MHL-400
- Capacity: 400 scfm
- Type: Twin tower heatless desiccant air dryer
- Pressure dew point: -40°F standard, -94°F optional
- Standard equipment: Pre-filters, after-filters, electronic controller
- Condition: New
- Weight: 1,350 lb
- Ships from: San Juan, Texas
- Support: Technical support by phone from ProParts compressor technicians
Part number cross-reference
MHL-400, MHL 400, MHL400
Product Videos
Custom Field
Connection Size (NPT) 1 1/2 in
Inlet Flow Rate 400 scfm
Voltage 115V/1Ph/60Hz
Max Working Pressure 200 psi
Pressure Drop ≤ 2 psi
Length 40 in
Width 26 in
Height 88 in
Weight 1350 lbs
Product Line Mikropor MHL Heatless Desiccant Air Dryer
Capacity (FAD) 400 scfm
Air Connection 1-1/2" NPT
Dimensions (L x W x H) 46 x 26 x 88 in
Type Heatless (Twin-Tower) Desiccant Dryer
Pressure Dew Point -40°F (-94°F optional)
Max Inlet Temperature 120°F
Max Ambient Temperature 120°F
Cooling Air-Cooled
