Product Description

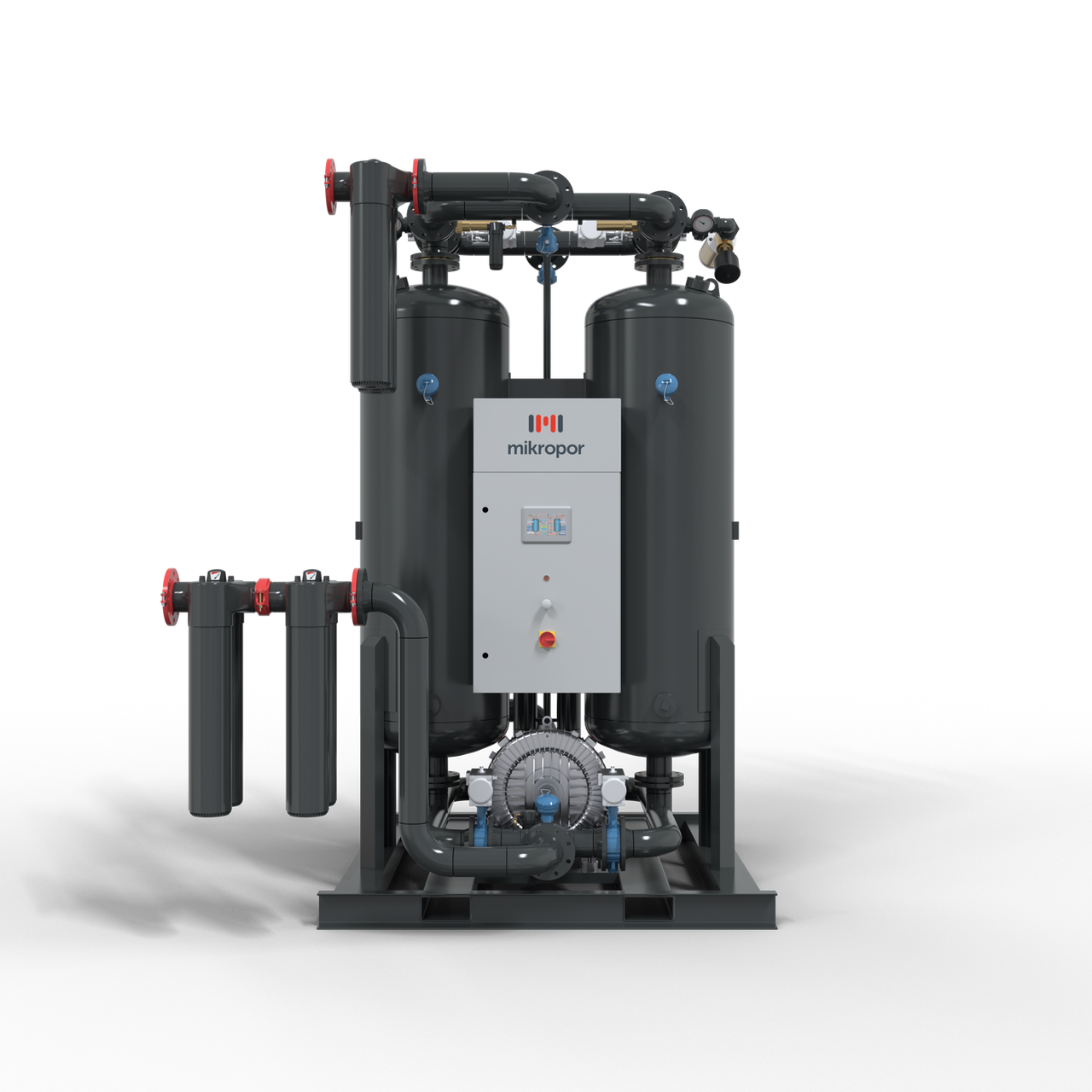

The Mikropor MBL-2500-460V is an MBL series blower-purge desiccant air dryer, model MBL-2500, configured for 460V with filters included. It is supplied new by ProParts, Inc., an industrial air compressor sales, service and parts company serving Texas and Northern Mexico. Search by part number MBL-2500-460V or by the full configuration code listed below.
Details
- Brand: Mikropor
- Series: MBL blower-purge desiccant air dryer
- Model: MBL-2500
- Voltage: 460V
- Part number / SKU: MBL-2500-460V
- Filters: Included
- Condition: New
- Ships from: San Juan, Texas
Part number cross-reference
MBL-2500-460V is also listed under the configuration code MBL-2500-4"-FLG-40C-7016-FLT.
Technical support is available by phone from ProParts compressor technicians to help confirm the right dryer for your compressed air system.
Product Videos
Custom Field
Product Line Mikropor MBL Blower-Purge Desiccant Air Dryer
Air Connection 4" Flange
Voltage 460V/3Ph/60Hz
Capacity (FAD) 2500 scfm
Type Blower-Purge Heated Desiccant Dryer
Max Working Pressure 200 psi
Pressure Drop ≤ 2 psi
Pressure Dew Point -40°F
Max Inlet Temperature 115°F
Max Ambient Temperature 120°F
Cooling Air-Cooled
