Product Description
- Lifetime Warranty on AirEnd
- High efficiency, slow speed, heavy duty air end
- 48 hour “Uptime” Assurance Plan
- High Efficiency TEFC motor with Class F insulation, 1785 RPM
- Direct coupled drive group, flexible jaw coupling
- Lowest Oil Carryover in the Industry
- 3 stage air/oil separation system with less than 1 PPM
- 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications.
- Coolers mounted in insulated compartment providing excellent access for cleaning
- Twin cooling fans for maximum cooling capacity and efficiency
- “State of the Art” microprocessor controller
- UL/cUL compliant control panel with premium electrical components. Phase monitor included
- Full acoustical enclosure completed with powder coated panels & hinged doors providing easy access to maintenance items.
- 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
- Air taken from outside the package ensuring cool air source
- Superior stainless-steel control line tubing
- Rigid piping with high quality flanged connections for leak free operation
- Moisture separator with automatic drain, factory mounted
- Full complement of safety features
- Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
- 5-year package warranty (including parts and labor) with Lifetime Warranty on air end.

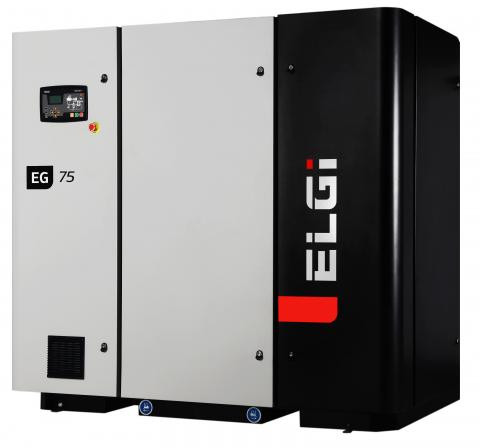

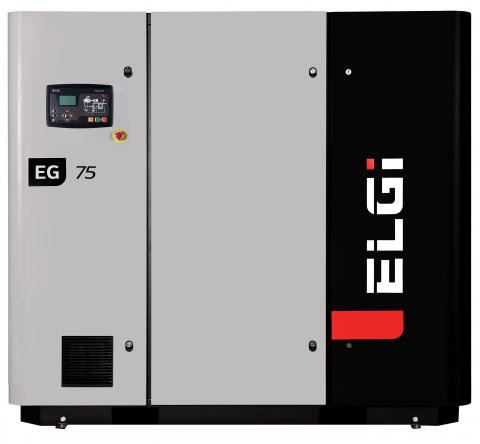

EG Series 75 to 100hp
• Oil Injected, air cooled
• Gear Driven AirEnd
• Wye-Delta starting on all models
• Modulation Control
• Available with VFD
• Very Low 1 ppm oil carryover
• NEMA Super E motor with Class F insulation
• Microprocessor Controlled
• 5 year Package warranty
• Life time AirEnd warranty
Product Videos
Custom Field
Motor Power 100 HP
Sound Level 69 dBA
Air Delivery 458 CFM
Working Pressure 125 PSIG
Control Type Load/Unload W Modulation (60% Capacity)
Motor Efficiency 95.4%
Outlet Connection 2 Inch NPT
Voltage 460V / 3ph, 60hz
Length 81.3 in
Width 53.4 in
Height 77.6 in
Weight 4674 lbs
