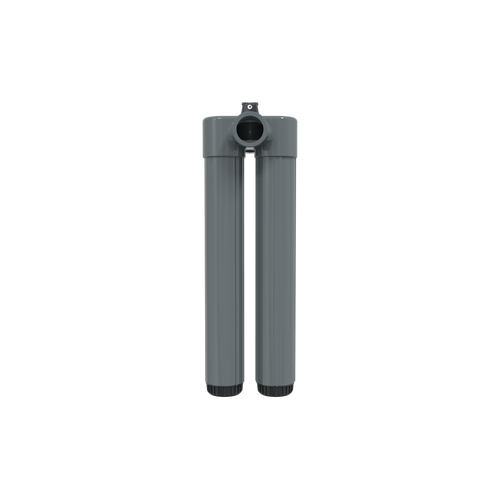

Product Description
GON-HC Series
In Addition to GON Series, Mikropor has also developed the GON-HC Series in order to respond to high capacity air pressure needs.
High capacity GON-HC Series Filters are designed to increase the capacity of air filters used in compressed air systems. Thus, the utilization of compressed air volume can be easily pushed up to 3200 cfm.
Compressed air users will be able to install GON-HC Series in their systems without any need for ASME Standards eligibility requirements.
Features
• 910 cfm- 3200 cfm air flow range
• NPT/BSP pipe and ANSI Flange sizes ranging from ¼ to 4
• Aluminum construction without any pores
• Options:
- "Standard Drain" having ½ connection size or
- "Drain-less" having ½ connection size with adapter.
• Elegantly designed connection clips and wall apparatus
• Production in accordance with ISO8573
• Zero Clearance
• Anodising
• Lock System Indicator
Product Videos
Custom Field
Connection Size (NPT) 4in FLG
Flow Rate 2,000 scfm
Housing Dimension A 14 in
Housing Dimension B 2 in
Housing Dimension C 34 in
Housing Dimension D 32 in
Housing Dimension E 1 in
Max Working Pressure 232 psi

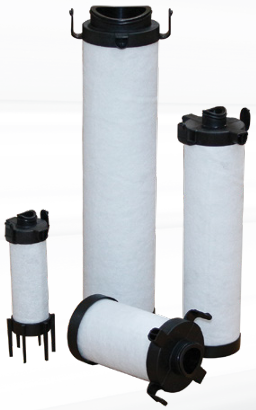

Element Model MON-US-2000
Weight 15 lbs
Product Line Mikropor GON Compressed Air Filter
Capacity (FAD) 2000 cfm
Air Connection 4" Flange
Replacement Element MON-US-2000
Dimensions (A x B x C x D x E) 14 x 2 x 34 x 32 x 1 in
Type Compressed Air In-Line Filter
